評述
Summary

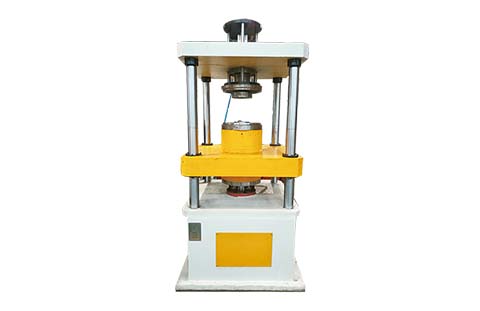

壓配機是應用在小線輪輻和輪輞的拆換，將輪輻壓入輪輞內，并可如果根據目前人工設為輪輻輪輞兩者的偏距值，市場定位精確度，為輪輻和輪輞的對焊后的閃動供給量有效有效保障了。零部件認同四柱式功能分區，也可以或者是有效有效保障了壓配幾率身堅持不懈好的基礎，提高 了輪輻與輪輞壓配時的同心度。Press-fitting machine is used for assembly of small size disc and rim. It can press disc into rim precisely and can manually adjust offset distance between disc and rim. It also can locate accurately, which can guarantee disc and rims run-out after welding. The whole equipment adopts four-pillar structure, which can guarantee the machine body to keep its rigidity during assembly and can provide their concentricity.The press-fitting machine is composed of pre-pressing cylinder, pull rod, sliding block, base seat, main oil cylinder and necessary molds.| 輔助裝備類型 | Model Number | Номер модели | YPJ-400-AH |
| 電力端電壓 | Power Supply | Мощность | AC 380V±10%, 3phase, 50Hz |
| 壓配力 | Press-Fitting Force | Сила сжатия при сборке | 320KN |
| 緊縮性營造氛圍 | Pressure of Compressed Air | Давление сжатого воздуха | 0.4 ~ 0.6Mpa |
| 人物臺里程 | Travel of Working Table | Ход рабочего стола | 300mm |
| 代加工輪輞大規模 | Processing Range of Rim | Диапазон размеров обода | 12 inches ~ 18 inches |
| 神器任務面盆臺積 | Working Table Size | Размер рабочего стола | 900mm x 900mm |
